Imperial Productions ®

 Custom Columns

 Tuscan Style







 Tuscan Columns - Subjects Below

 1a) New Hardwood

 4) Custom PDF Forms

 1b) Restoration & Historic Duplicates

 5) Finishing

 2) PolyComp & FiberComp

 6) Custom Procedures

 3) ArchPolymerTM













 Hardwood





 MATERIAL: 24 Hardwoods



   Hardwood columns provide the most flexibility

  for customization, from splitting for post wrap

  to wedging for outside and inside corners

  to specific heights and diameters










 Exterior Woods include:

 Knotty Pine:  Shellac the knots before painting

 Clear Pine: Some knots but small

 Western Red Cedar: Soft but Rot resilient

 White Oak: Extremely Hard



 Interior Woods include

 Red Oak, Maple, Mahogany, Beech,  Sap-Maple (very white)  Cherry, Alder, Bass, Ash



 All columns over 4" are hollow with 1-1/2" solid wood stave walls

 They are sold decorative but can be ordered with a solid core to carry loads

 or you can order a custom steel post

 Consult with your structural engineer and adhere to local building codes





 Hardwood Service Options



 Hardwood provides the ultimate customization for Size as they are all made to order

 They are made in 5 parts and each part can be customized



 Order your new columns with standard measurement or we can create the parts with specific

 measurements to match your needs or historic reproductions

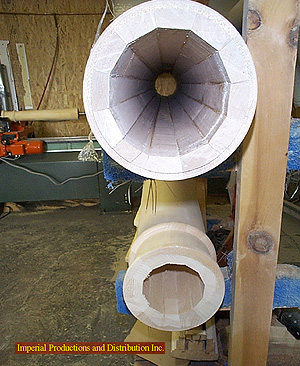

 The Walls are solid kiln dried hardwood 1-1/2 inches thick with no veneers

 Each wall stave is glued together and is stronger than one piece and avoids cracking as

 would happen with a single piece of wood that dries out and cracks



 For example if you want the plinth to be 4" high instead of 1-3/4"   It is possible !

 or the round flat to be 8-7/8" instead of 8 inches - It is Possible !











 Shaft Variances: Specify Height



 Specify the total height of the shaft including the Capital and Base

 We will calculate the shaft height excluding the cap and base







 Shaft Variances: Non-Tapered or Tapered

  You can specify if

  the shaft is tapered

  or non-tapered

  and the degree of

  tapering

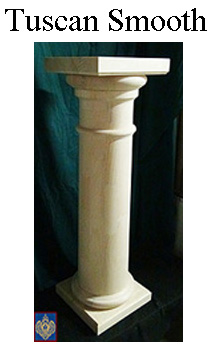

 Non-Tapered





 Top and Bottom of the shaft

 has the same Diameter



  Tapered



 A gradual increase of diameter 2/3rds

 down the shaft. The correct entasis

 means it goes straight at the bottom

 1/3 of the shaft

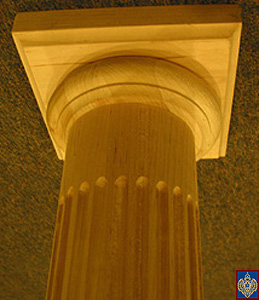

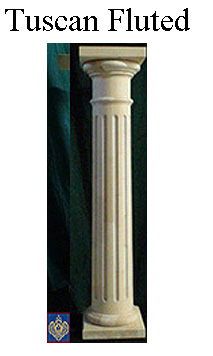

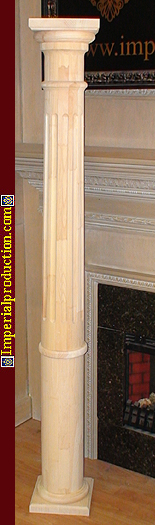

 Shaft Variance: Smooth to Fluted Ratio



  All shafts can be made Fully Smooth

  or Fully Fluted with 12 or 24 Flutes



  Partly smooth or fluted or a combination is available



  Select from

  a) the last third, smooth as shown here



  b) the last third, Fluted with 12 or 24 Flutes





 Shaft Variance: Split for post wrap or Engaged







 All of our columns can be ordered split for

  post wrap around a load bearing post

  We do sell load bearing steel posts

  custom sized - round and square



  Specify if you need the caps and base

  to have a hole for the load bearing post



  Columns can be ordered split to go around

  inside & outside corners

  or engaged portions splits against a wall













 Capital & Base Variance: Specify Measurements

 The hardwood

 capitals and bases

 can be

 made to any size

 since they are

 independent of the

 shafts





















 Hardwood Historic Duplicates

  \

 We can produce exact duplicates of your historic columns

  We need all the measurements, "dead-on" photos

  and / or  drawings specifying all the parts



 Rotted Column Components





 If for example, your column base is totally rotted

 inside and out like this one,  it is unlikely you will be

 able to save any parts of it



 The base holds the load of the shaft as the

 shaft bears down on the base



 If the base is salvageable, you can cut away

 just the rotted parts with a reciprocating saw and

 retain the good base core that will hold the shaft load





 Removing the Column & Saving a Portion of it



 Take down the entire column and cut away

 the old base and rotted part of the column.  We can

 replace the base and shaft portion as shown here









 Info Link for Article

   Read how to prolong wood life

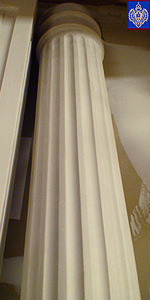

 PolyCompTM & FiberCompTM







 MATERIAL: PolyCompTM  and FiberCompTM



 These two materials are strong composites know as

 FRP Fiberglass Re-enforced Polymers.  They are made

 from Calcium Carbonate, Marble Chips and Fiberglass

 They are rot, water, and insect resistant.

 They are more difficult to split but can be split with a diamond blade

 or reciprocating saw.

 The bases and caps are hollow and hold no load and wrap the shaft

 The load is born on the shaft









 Click for Material Properties





 Service Options: PolyCompTM



  Whole columns are load bearing as per the specified shaft load

 however you can order PolyCompTM Split to wrap a steel post



  Once Split they cease to be load bearing

       a) Split for pilaster or

       b) Split for Post Wrap



 There is an option to be white painted

 The bases are made from FRP and the capitals from

 ArchPolymerTM











 Service Options: FiberCompTM







 Whole columns are load bearing as per the specified shaft load

 however you can order them split.



 FiberCompTM has a higher level of customization

 offering the following Split options



 * Split for Post Wrap - 2 equal parts

 * Wedged for an outside corner

 * Cut out for wrapping a wall

 * Split for an Inside Corner

 * Engaged Slice to go up against a wall



 There is no option to be painted

 The bases and capitals are made from ArchPolymerTM





















 ArchPolymerTM





 MATERIAL: ArchPolymerTM



 ArchPolymerTM is a synthetic composite material.

 It is rot, water, and insect resistant.

 You can cut it like wood and screw into it.

 Some models come primed.













 Click for Material Properties





 Service Options: ArchPolymerTM



 ArchPolymerTM shafts are split and are not load bearing

 We do sell steel posts that are custom made to size to hold loads



 The capitals and bases are whole but can be ordered split



 The material is very easy to cut with a manual saw to

 adjust shaft heights.  There is no customization to shafts



 Capitals and bases can be modified slightly in certain cases.

 For example the plinth (bottom square) can be made

 higher but the hole cannot be modified.



 ArchPolymerTM can be ordered painted

















 Flexible Moulding Wrap to Replace Broken Torus







 For those that have a broken Torus here are two

 SuperWiggly ResinMold® casings



 Remove the rotten round portion, provide us with

 the circumference of the existing Torus and apply

 your SupperWiggly ResinMold®























 Custom Forms





 How to Order a Custom Column:



  Send us an email with your name, address and phone number



  We need to know the following:



  1) Select from   a) Hardwood

                            b) FRP-PolyCompTM   FRP-FiberCompTM

                            c) ArchPolymerTM



  2) What is the total height of the column including capital and base



  3) If Custom is needed Fill out the following PDF forms below and send it to us

      with the measurements filled in on the form



  5) How many columns do you need

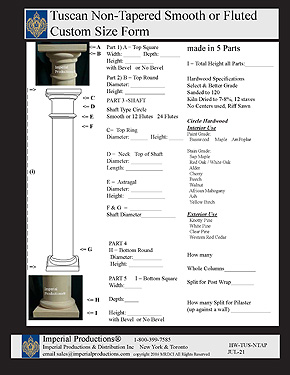

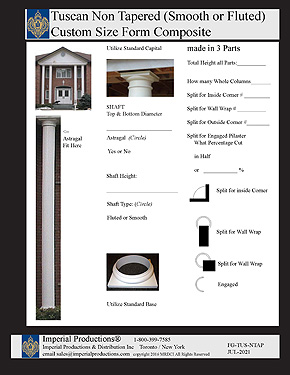

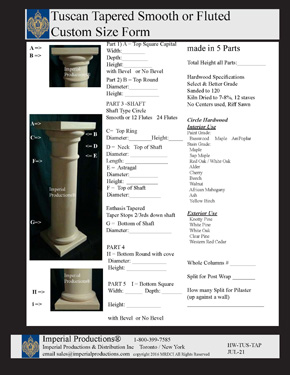

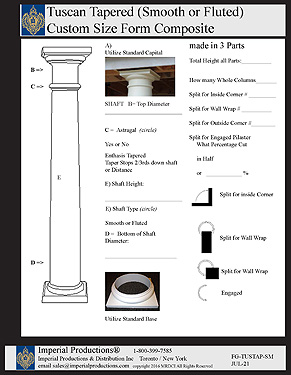

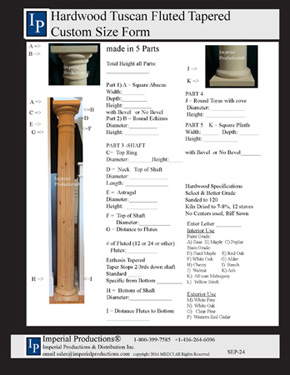

 Round Tuscan Columns PDF Forms

 All materials    Hardwood only    Hardwood only























 Finishing





 REAL METAL COATING



  All of our columns can be metal coated in real metal

   Select from bronzes, silvers, golds, coppers for

   a special look.



   Suited well for the discerning client

   or commercial endeavor









 ARTISAN PAINTING AND STAINING SERVICE


  All of our columns can be ordered Painted or in

  the case of Hardwood - stained



  <= Select from our many historical colors of paints or

  specify your brand and number















 Custom Procedures







 Quotes - send us forms and photos

 Info



 A Quote will be provided prior to accepting an order



 Provide us with your Ship to & Bill to Address, phone number

 All orders are paid in full prior to production



 Email

  email: sales@imperialproductions.com

 Fax



  1-888-244-1083 or 416-264-6098







 Acceptance of the Quote

 Submit

 Payment



  For All Orders Full payment is required

  1)  Money Orders

  2)  Company Checks

  3)  Money Wire Transfers

  We do not accept Cash or Credit Card on Custom Orders



 Review

 our Terms



  click for=>    Imperial Sales Policy



  All orders cannot be cancelled for any reason



 Timing



  Once Accepted, Timing starts from the time you sign

  the shop drawings not the Quote Date



 Responsibility:



  Once you accept the quote and sign off on the shop drawings,

  the custom product(s) will be made to the closest measurements that

  manufacturing allows (providing for manufacturing tolerances)



  Shop drawings are made as a courtesy for detail confirmations. They must

  be signed back within 10 days or production begins without them.

  Any major changes noted on the shop drawings will be considered as

  extras and will be quoted accordingly as a schedule B which must be paid

  prior to production.



  The application of the product to the job site is the responsibility of the

  architect, designer, structural engineer, or contractor.

  No affixing hardware is supplied.



  Any custom products are made all sales final and cannot be exchanged

  or returned













  MORE QUESTIONS



  Call us at 1-800-399-7585 or Email  sales@imperialproductions.com



  and send your photos for our review









  Back to Custom Product Main Page
